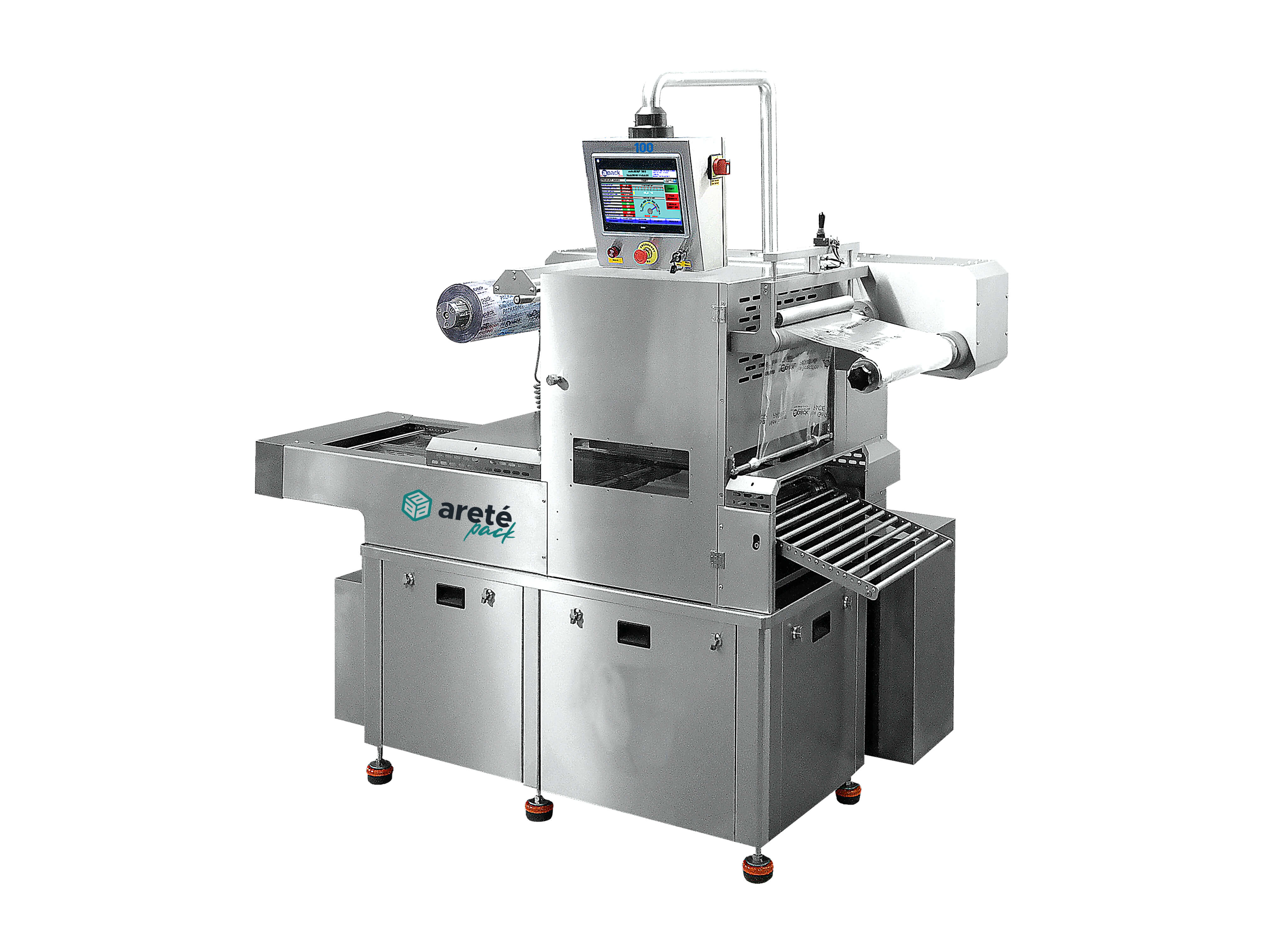

ATS 100 Automatic MAP Tray Sealer

ATS 100 Automatic MAP Tray Sealer

Introducing the Automatic MAP Tray Sealer, the perfect solution for businesses looking for a high-performance packaging machine.

The Automatic MAP Tray Sealer is constructed with high-quality ISI304 stainless steel, making it durable and resistant to corrosion. Its advanced features include the ability to adjust up to 99 different process programs, providing maximum flexibility and customization based on your unique packaging requirements. Automatic tray dispensers, automatic product scaling and filling units, labeling and barcoding units, product collectors, and boxing units can be easily implemented.

It features an intuitive control panel that enables operators to adjust the temperature, sealing time and gas mixture with ease. This feature ensures that your products are packaged to your exact specifications, ensuring maximum freshness and quality.

It is easy to clean and maintain using the removable side covers, reducing downtime and ensuring maximum productivity. Its sleek and compact design also makes it easy to integrate into your existing packaging line.

ATS 100 Automatic MAP Tray Sealer - Areté Group Packaging Machinery and Conveyor Solutions

Modified Atmosphere Packaging

Modified Atmosphere Packaging is a technology developed to ensure packaged food products stay fresh and attractive for as long as possible.

  • Harmless inert gases are released into the pack after the evacuation operation
  • Slows down the process of oxidation and the growth of microbes
  • Guarantees extended shelf life and product stays fresh longer
  • Looks attractive to the end customer
  • Products maintain their color and taste
PRODUCT MAP Life Standard Atmosphere Life
Tost Bread 2-3 Months 10 Days
Cake 40-60 Days 10 Days
Patty 6 Weeks 1-2 Days
Pizza 30 Days 1-2 Days
Hamburger 30 Days 1 Week
Pita 2-3 Months 1 Month
Cheese 6-8 Days 3 Days

Technical Specifications

Power 400V, 50-60Hz, 3/N/PE
Power consumption 4.0 kW minimum - 8.0 kW maximum
Vacuum pump 100-160 m³/h
Air pressure consumption 6 bar Homogen Dry Air, 25Nl/cycle
Gas pressure 2-6 bar
Control system Omron HMI PLC Touch Screen (Programmable Logic Control)
Dimensions 1000X2540X2080 mm
Weight (with vacuum pump) Approx. 750Kg.
Film width 420 mm. Maximum
Film roll diameter 76 mm maximum
Capacity 5-8 cycle/min (Vacuum and Gas)
8-12 cycle/min (Only Sealing)
Optional Liquid / Dust Filter
Loading Unit 1,5-3,0 m.
