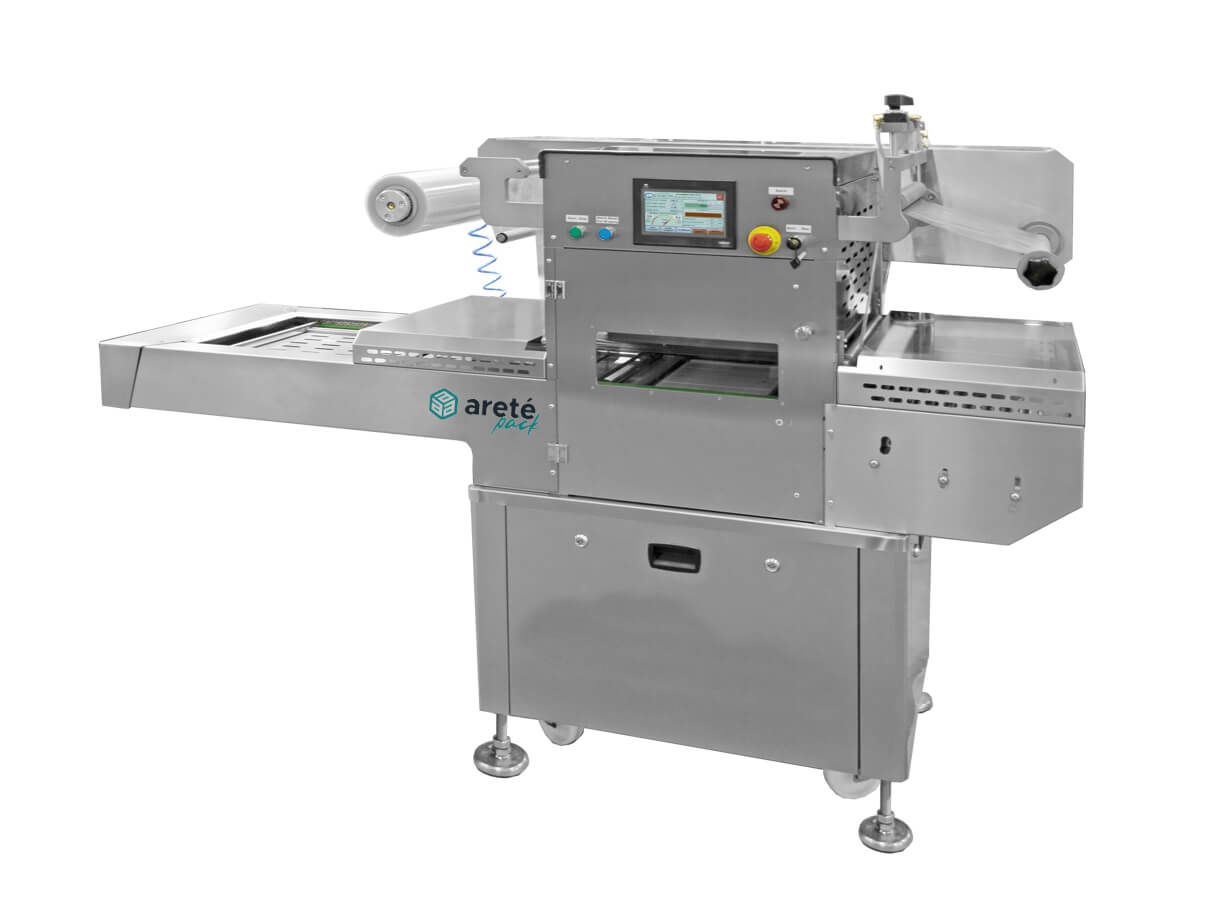

ATS 100E Automatic ECO Tray Sealer

Introducing the Automatic Eco Tray Sealer, the perfect solution for businesses looking for an efficient packaging machine. This machine seals trays using the thermal-transfer method. For this reason commonly preferred for food products with short shelf life. Daily patisserie and bakery products, portioned snacks, takeaways, dried foods, ready meals, salads, and delicatessen items are suitable for the ECO sealing machine.

Its advanced features include fully automatic tray sealing, making it an ideal choice for businesses that require a high level of automation in their packaging operations. The machine has 99 program memories, providing maximum flexibility and customization based on your unique packaging requirements. Additionally, it is easy to clean and maintain, reducing downtime and maximizing productivity.

It is especially suitable for the products prepared on the shelves of big markets for daily consumption. Sealed products will maintain their freshness all day long in the cold chain (+4oC).

It is suitable for the use of single or multi-compartment trays.

Main Features

Certificates of conformity to international standards
Easy to use
Compatible with all kinds of packaging accessories (Printer, weigher, etc.)
Easy to maintain and clean
Flexible, can be used for various products
Suitable for food and medical packaging

Technical Specifications

Power	200-400V, 50-60Hz, 3/N/PE
Power consumption	minimum 4.0 – maximum 8.0 kW
Air pressure consumption	6 Bar Homogeneus Dry Air, 25Nl/cycle
Operation	Fully Automatic Chain Drive with Pneumatic System
Control system	7" Omron PLC (Programmable Logic Control) HMI (Human Machine Interface) Colored Touch Screen
Dimensions	985x2081x1520mm.
Weight (with vacuum pump)	Approx 500 Kg. (Only Machine)
Film width	420 mm.
Film roll diameter interior	76mm max
Film roll diameter exterior	300 mm max
Capacity	8-10 cycle/min
Loading Unit	1.5-3.0 mt
