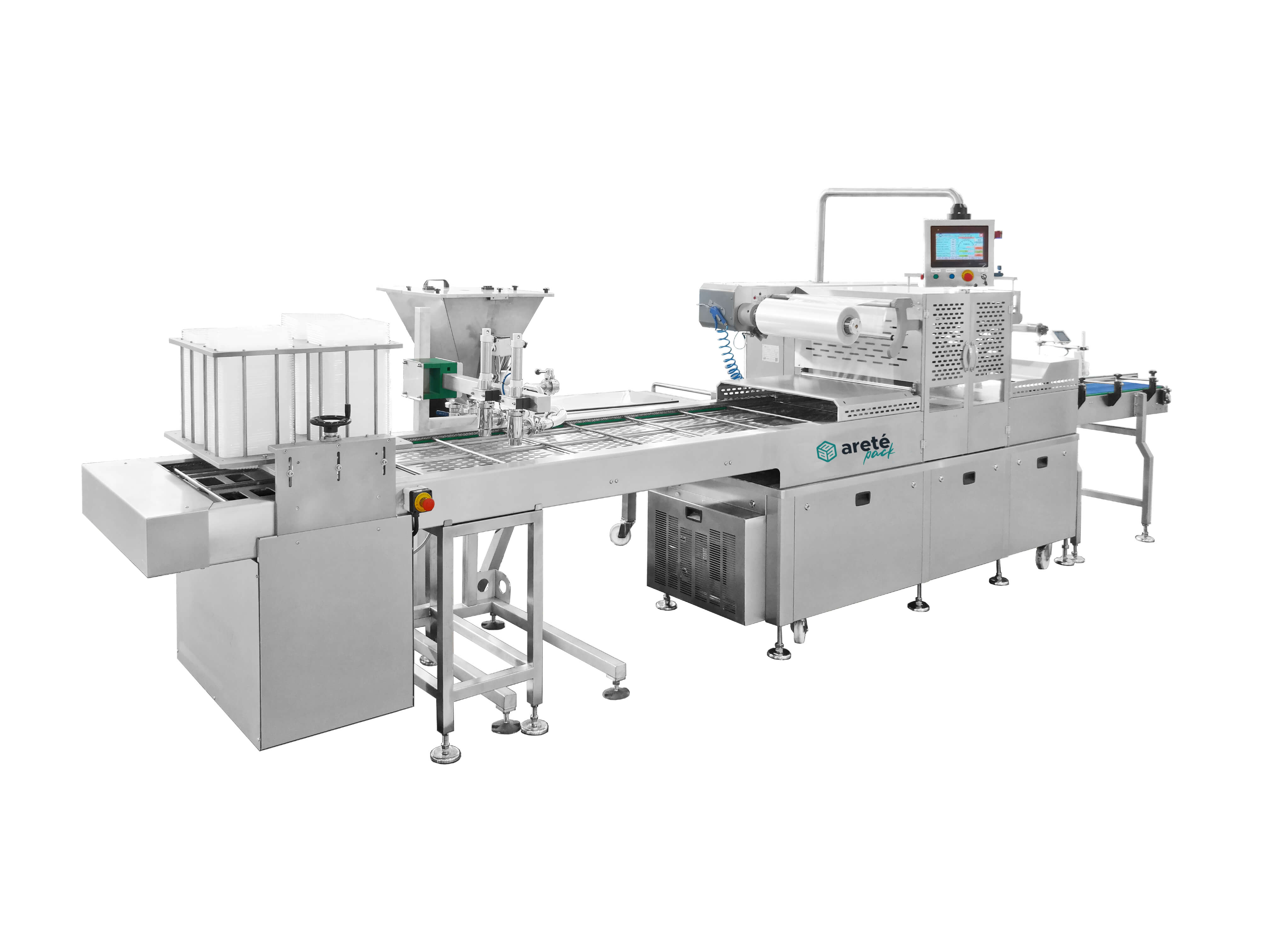

ATS 200 Automatic MAP Tray Sealer

ATS 200 Automatic MAP Tray Sealer

Introducing the Automatic MAP Tray Sealer, the perfect solution for businesses looking for a high-performance and high-volume packaging machine.

The Automatic MAP Tray Sealer is equipped with two raw feeding systems, making it ideal for businesses that require a high volume of production. This feature enables operators to load and seal multiple trays simultaneously, maximizing productivity and efficiency in your packaging operation.

The machine operates on an automatic system, allowing for ease of use and high precision in your packaging process. It features an intuitive control panel that enables operators to adjust the temperature, sealing time, and gas mixture to achieve optimal packaging results. Tray dispensers, auto-filling units, scaling, mapping, labeling, and barcoding units can be easily implemented into the line.

Overall, the Automatic MAP Tray Sealer is an excellent investment for businesses that require a high-performance and high-volume packaging solution. Its advanced features, robust construction, and high level of automation make it a valuable asset for any packaging operation.

ATS 200 Automatic MAP Tray Sealer - Areté Group Packaging Machinery and Conveyor Solutions

Modified Atmosphere Packaging

Modified Atmosphere Packaging is a technology developed to ensure packaged food products stay fresh and attractive for as long as possible.

  • Harmless inert gases are released into the pack after the evacuation operation
  • Slows down the process of oxidation and the growth of microbes
  • Guarantees extended shelf life and product stays fresh longer
  • Looks attractive to the end customer
  • Products maintain their color and taste
PRODUCT MAP Life Standard Atmosphere Life
Tost Bread 2-3 Months 10 Days
Cake 40-60 Days 10 Days
Patty 6 semanas 1-2 Days
Pizza 30 Days 1-2 Days
Hamburger 30 Days 1 Week
Pita 2-3 Months 1 Month
Cheese 6-8 Days 3 Days

Technical Specifications

Fuerza 400V, 50-60Hz, 3/N/PE
El consumo de energía 4.0 kW minimum - 8.0 kW maximum
Bomba aspiradora 105-205 m³/h
Consumo de presión de aire 6 bar Homogen Dry Air, 25Nl/cycle
Presion del gas 2-6 bar
Sistema de control Omron HMI PLC Touch Screen (Programmable Logic Control)
Dimensiones 985x2081x1520mm.
Peso (con bomba de vacío) Approx 500 Kg. (Only Machine)
Ancho de película 420 mm.
Diámetro del rollo de película 76mm max
Capacidad 5-8 cycle/min (Vacuum and Gas)
8-12 cycle/min (Only Sealing)
Opcional Liquid / Dust Filter
Unidad de carga 1,5-3,0 m.
