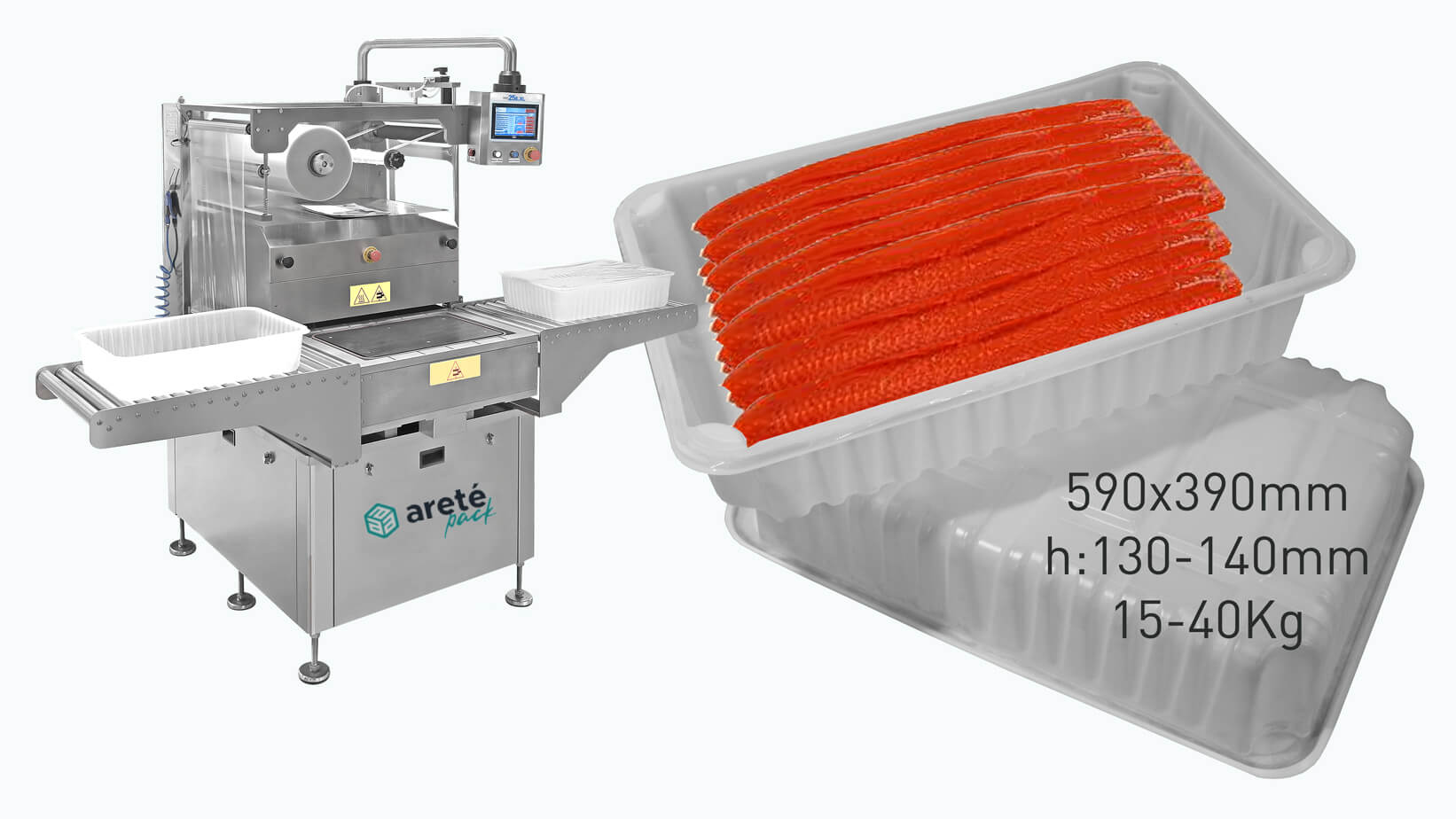

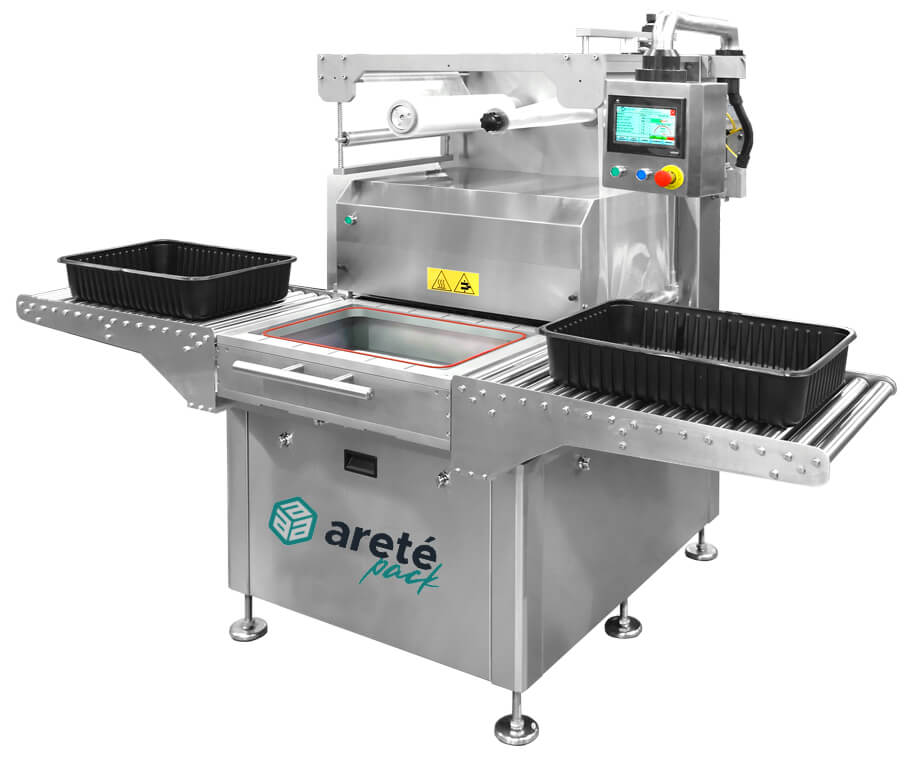

STS 25XL Semi-Automatic MAP Bulk Tray Sealer

Introducing the Semi-Automatic MAP Bulk Tray Sealer is a perfect solution for your non-standard large and heavy MAP packaging needs. This state-of-the-art machine is designed to handle bulk packaging requirements with ease, making it an ideal choice for businesses in various industries.

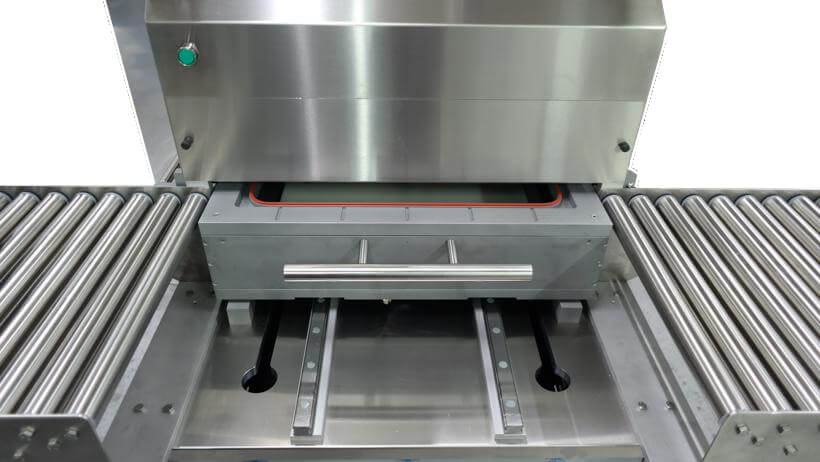

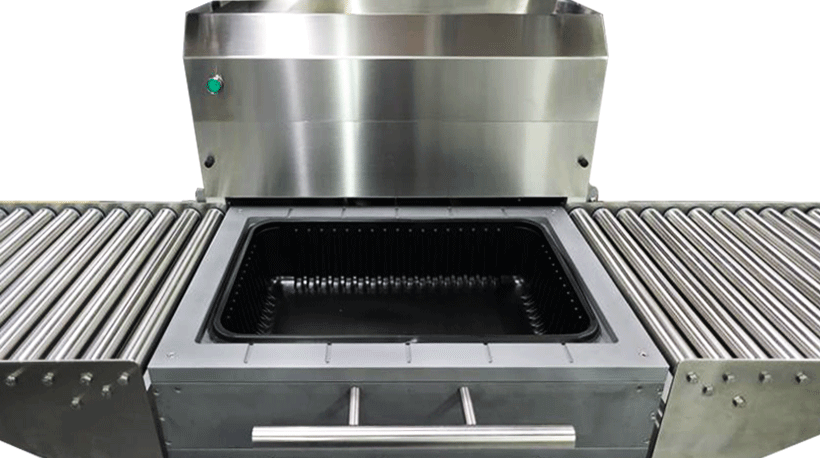

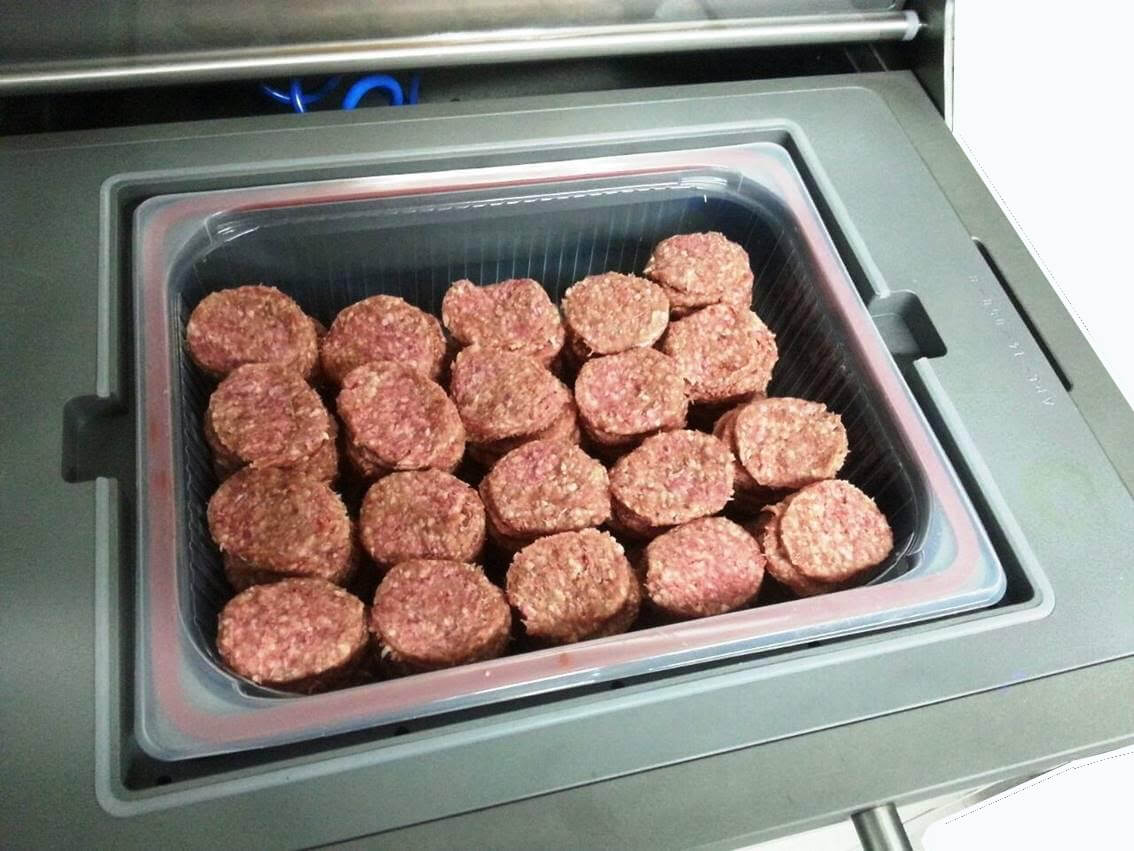

The Semi-Automatic MAP Bulk Tray Sealer is built with robust and durable materials, ensuring it can withstand heavy-duty use without compromising performance. The automated sealing process provides easy and efficient operation. This machine is perfect for packaging large and heavy products, with its spacious chamber that can accommodate up to XXL-sized items. Thanks to the pneumatic lift, the heavy plates are easily lowered into the pool and lifted up. Another important feature is that the welding pool is washable. It is ideal for products with spillage, odor, or oil.

It comes with an intuitive control panel that makes it easy to set the packaging parameters, allowing maximum customization based on your specific packaging needs. The machine is also easy to clean and maintain, reducing downtime and maximizing productivity.

Its advanced features, durability, and user-friendly design make it a valuable asset for any packaging operation.

Modified Atmosphere Packaging

Modified Atmosphere Packaging is a technology developed to ensure packaged food products stay fresh and attractive for as long as possible.

Harmless inert gases are released into the pack after the evacuation operation
Slows down the process of oxidation and the growth of microbes
Guarantees extended shelf life and product stays fresh longer
Looks attractive to the end customer
Products maintain their color and taste

PRODUCT	MAP Life	Standard Atmosphere Life
Tost Bread	2-3 Months	10 Days
Cake	40-60 Days	10 Days
Patty	6 Weeks	1-2 Days
Pizza	30 Days	1-2 Days
Hamburger	30 Days	1 Week
Pita	2-3 Months	1 Month
Cheese	6-8 Days	3 Days

Technical Specifications

Power	400V, 50-60Hz, 3/N/PE
Power consumption	6kW maximum
Vacuum pump	105m³/h
Air pressure consumption	45Nl/cycle, 6 bar Dry Air
Gas pressure	2-8 bar
Control system	Omron HMI PLC Touch Screen
Dimensions	920x1280x1990 mm
Weight (with vacuum pump)	650 kg.

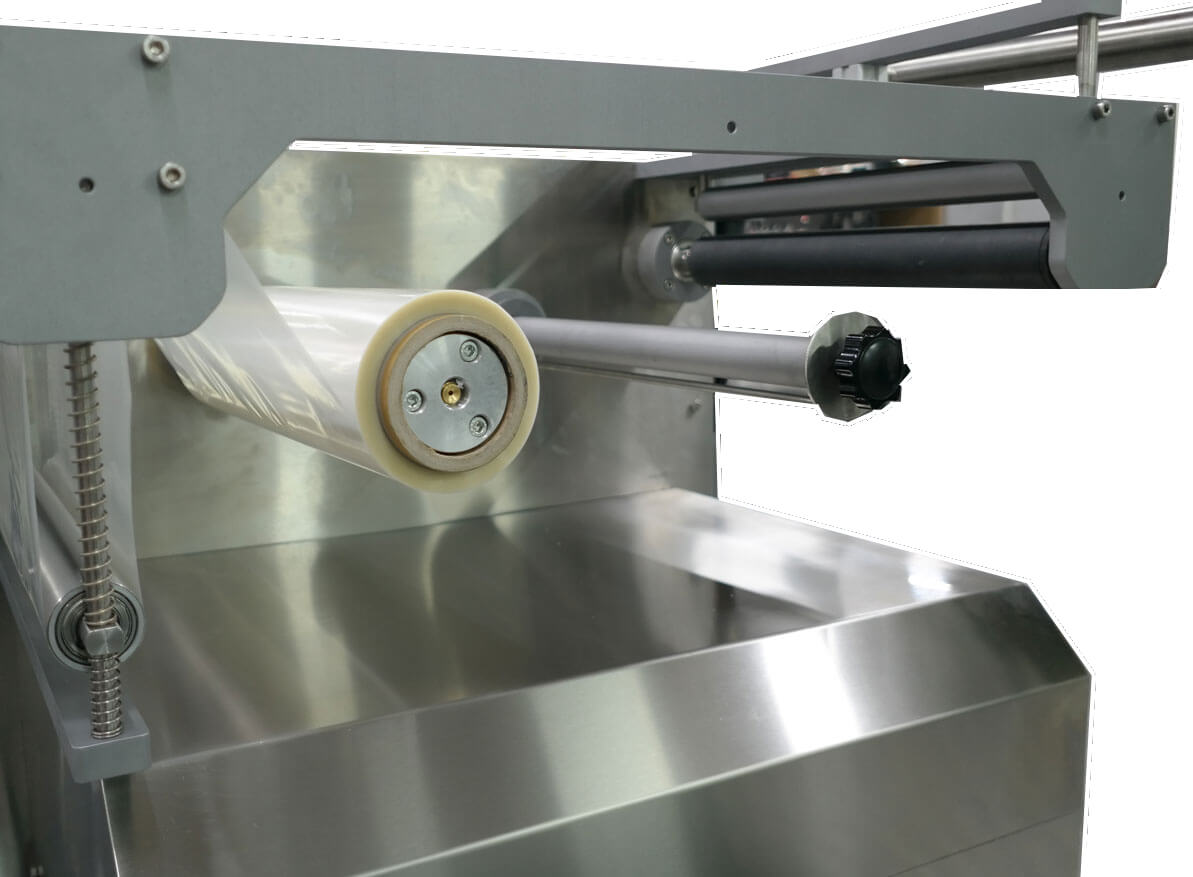

Film width	480 mm maximum
Film roll diameter	76 mm maximum
Capacity	4-6 cycle/min (Vacuum and Gas) 8-10 cycle/min (Only Sealing)
Operation	Semi automatic with drawer. Elevated Pool
